F系列-FS6810
发布日期：2024-01-12 浏览次数：161

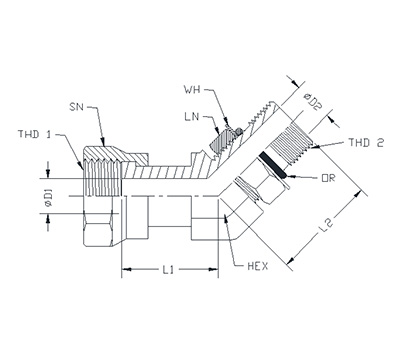

| Unit: inch | ||||||||||||
| ITEM | P/N | HEX | THD 1 | THD 2 | L1 | L2 | D1 | D2 | LN | WH | OR | SN |
| 1 | FS6810-04-04-NWO-FG | 0.562 | 9/16-18 UNF | 7/16-20 UNF | 0.94 | 1.18 | 0.172 | 0.172 | LNF-04 | WHE-04 | OE-04 | SNJ-04 |
| 2 | FS6810-06-06-NWO-FG | 0.750 | 11/16-16 UNF | 9/16-18 UNF | 1.06 | 1.30 | 0.264 | 0.264 | LNF-06 | WHE-06 | OE-06 | SNJ-06 |
| 3 | FS6810-08-08-NWO-FG | 0.750 | 13/16-16 UNF | 3/4-16 UNF | 1.32 | 1.43 | 0.378 | 0.378 | LNF-08 | WHE-08 | OE-08 | SNJ-08 |
| 4 | FS6810-10-10-NWO-FG | 1.062 | 1-14 UNS | 7/8-14 UNF | 1.44 | 1.76 | 0.484 | 0.484 | LNF-10 | WHE-10 | OE-10 | SNJ-10 |
| 5 | FS6810-12-12-NWO-FG | 1.188 | 1-3/16-12 UN | 1-1/16-12 UN | 1.57 | 1.97 | 0.609 | 0.609 | LNF-12 | WHE-12 | OE-12 | SNJ-12 |
| 6 | FS6810-16-16-NWO-FG | 1.438 | 1-7/16-12 UN | 1-5/16-12 UN | 1.52 | 2.06 | 0.811 | 0.811 | LNF-16 | WHE-16 | OE-16 | SNJ-16 |
