J系列-2405
发布日期：2024-01-12 浏览次数：191

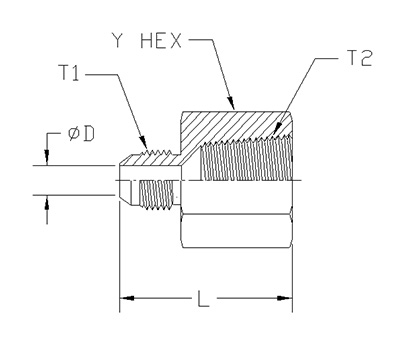

| ITEM | P/N | Y HEX | T1 | D | T2 | L |
| 1 | 2405-04-02 | 0.562 | 7/16-20 UNF | 0.172 | 1/8-27 NPTF | 1.19 |
| 2 | 2405-04-04 | 0.750 | 7/16-20 UNF | 0.172 | 1/4-18 NPTF | 1.39 |
| 3 | 2405-04-06 | 0.875 | 7/16-20 UNF | 0.172 | 3/8-18 NPTF | 1.45 |
| 4 | 2405-05-02 | 0.562 | 1/2-20 UNF | 0.234 | 1/8-27 NPTF | 1.17 |
| 5 | 2405-05-04 | 0.750 | 1/2-20 UNF | 0.234 | 1/4-18 NPTF | 1.39 |
| 6 | 2405-05-06 | 0.875 | 1/2-20 UNF | 0.234 | 3/8-18 NPTF | 1.45 |
| 7 | 2405-06-02 | 0.625 | 9/16-18 UNF | 0.297 | 1/8-27 NPTF | 1.19 |
| 8 | 2405-06-04 | 0.750 | 9/16-18 UNF | 0.297 | 1/4-18 NPTF | 1.40 |
| 9 | 2405-06-06 | 0.875 | 9/-16-18 UNF | 0.297 | 3/8-18 NPTF | 1.46 |
| 10 | 2405-06-08 | 1.125 | 9/16-18 UNF | 0.297 | 1/2-14 NPTF | 1.69 |
| 11 | 2405-08-04 | 0.813 | 3/4-16 UNF | 0.391 | 1/4-18 NPTF | 1.55 |
| 12 | 2405-08-06 | 0.875 | 3/4-16 UNF | 0.391 | 3/8-18 NPTF | 1.56 |
| 13 | 2405-08-08 | 1.125 | 3/4-16 UNF | 0.391 | 1/2-14 NPTF | 1.79 |
| 14 | 2405-10-08 | 1.125 | 7/8-14 UNF | 0.484 | 1/2-14 NPTF | 1.89 |
| 15 | 2405-10-12 | 1.375 | 7/8-14 UNF | 0.484 | 3/4-14 NPTF | 1.95 |
| 16 | 2405-12-08 | 1.125 | 1-1/16-12UN | 0.609 | 1/2-14 NPTF | 2.05 |
| 17 | 2405-12-12 | 1.375 | 1-1/16-12UN | 0.609 | 3/4-14NPTF | 2.06 |
| 18 | 2405-12-16 | 1.625 | 1-1/16-12UN | 0.609 | 1-11-1/2 NPTF | 2.3 |
| 19 | 2405-16-12 | 1.375 | 1-5/16-12 UN | 0.844 | 3/4-14 NPTF | 2.08 |
| 20 | 2405-16-16 | 1.625 | 1-5/16-12 UN | 0.844 | 1-11-1/2 NPTF | 2.35 |
| 21 | 2405-20-20 | 2.000 | 1-5/8-12 UN | 1.078 | 1-1/4-11-1/2 NPTF | 2.49 |
