J系列-2602
发布日期：2024-01-12 浏览次数：167

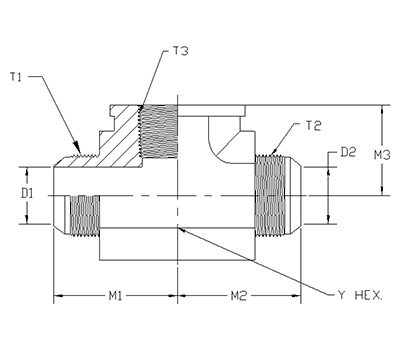

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 |
| 1 | 2602-04-04-02-FG | 0.562 | 7/16-20UNF | 1.08 | 0.172 | 7/16-20UNF | 1.08 | 0.172 | 1/8-27NPTF | 0.66 |
| 2 | 2602-04-04-04-FG | 0.75 | 7/16-20UNF | 1.22 | 0.172 | 7/16-20UNF | 1.22 | 0.172 | 1/4-18NPTF | 0.88 |
| 3 | 2602-05-05-02-FG | 0.562 | 1/2-20UNF | 1.08 | 0.234 | 1/2-20UNF | 1.08 | 0.234 | 1/8-27NPTF | 0.66 |
| 4 | 2602-06-06-04-FG | 0.75 | 9/16-18UNF | 1.23 | 0.297 | 9/16-18UNF | 1.23 | 0.297 | 1/4-18NPTF | 0.88 |
| 5 | 2602-06-06-06-FG | 0.875 | 9/16-18UNF | 1.31 | 0.297 | 9/16-18UNF | 1.31 | 0.297 | 3/8-18NPTF | 1.02 |
| 6 | 2602-08-06-06-FG | 0.875 | 3/4-16UNF | 1.42 | 0.297 | 3/4-16UNF | 1.42 | 0.297 | 3/8-18NPTF | 1.02 |
| 7 | 2602-08-08-06-FG | 0.875 | 3/4-16UNF | 1.42 | 0.391 | 3/4-16UNF | 1.42 | 0.391 | 3/8-18NPTF | 1.02 |
| 8 | 2602-08-08-08-FG | 1.062 | 3/4-16UNF | 1.52 | 0.391 | 3/4-16UNF | 1.52 | 0.391 | 1/2-14NPTF | 1.23 |
| 9 | 2602-10-10-08-FG | 1.062 | 7/8-14UN | 1.64 | 0.484 | 7/8-14UN | 1.64 | 0.484 | 1/2-14NPTF | 1.23 |
| 10 | 2602-12-12-12-FG | 1.312 | 1-1/16-12UN | 1.89 | 0.609 | 1-1/16-12UN | 1.89 | 0.609 | 3/4-14NPTF | 1.36 |
| 11 | 2602-14-14-12-FG | 1.312 | 1-3/16-12UN | 1.86 | 0.719 | 1-3/16-12UN | 1.86 | 0.719 | 3/4-14NPTF | 1.42 |
| 12 | 2602-16-16-12-FG | 1.312 | 1-5/16-12UN | 1.84 | 0.844 | 1-5/16-12UN | 1.84 | 0.844 | 3/4-14NPTF | 1.37 |
| 13 | 2602-16-16-16-FG | 1.625 | 1-5/16-12UN | 2.17 | 0.844 | 1-5/16-12UN | 2.17 | 0.844 | 1-11.5NPTF | 1.62 |
| 14 | 2602-20-20-20-FG | 1.875 | 1-5/8-12UN | 2.33 | 1.078 | 1-5/8-12UN | 2.33 | 1.078 | 1-1/4-11-1/2NPTF | 1.7 |
| 15 | 2602-24-24-24-FG | 2.562 | 1-7/8-12UN | 2.89 | 1.312 | 1-7/8-12UN | 2.89 | 1.312 | 1-1/2-11-1/2NPTF | 2.08 |
| 16 | 2602-32-32-32-FG | 2.812 | 2-1/2-12UN | 3.3 | 1.781 | 2-1/2-12UN | 3.3 | 1.781 | 2-11-1/2NPTF | 2.39 |
