J系列-6801-L
发布日期：2024-01-12 浏览次数：157

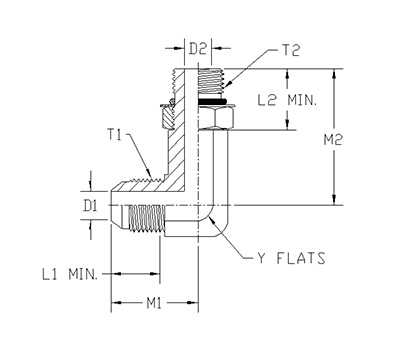

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | 6801-L-04-04-NWO-FG | 0.438 | 7/16-20UNF | 0.89 | 0.172 | 7/16-20UNF | 1.19 | 0.172 |
| 2 | 6801-L-06-06-NWO-FG | 0.562 | 9/16-18UNF | 1.06 | 0.297 | 9/16-18UNF | 1.66 | 0.297 |
| 3 | 6801-L-06-08-NOW-FG | 0.75 | 9/16-18UNF | 1.14 | 0.297 | 3/4-16UNF | 1.97 | 0.391 |
| 4 | 6801-L-08-08-NWO-FG | 0.75 | 3/4-16UNF | 1.25 | 0.391 | 3/4-16UNF | 1.81 | 0.391 |
| 5 | 6801-L-08-10-NWO-FG | 0.875 | 3/4-16UNF | 1.33 | 0.391 | 7/8-14UN | 2.13 | 0.484 |
| 6 | 6801-L-10-08-NWO-FG | 0.875 | 7/8-14UNF | 1.45 | 0.484 | 3/4-16UNF | 1.81 | 0.391 |
| 7 | 6801-L-10-10-NOW-FG | 0.875 | 7/8-14UNF | 1.45 | 0.484 | 7/8-14UNF | 2.16 | 0.484 |
| 8 | 6801-L-12-12-NWO-FG | 1.062 | 1-1/16-12UN | 1.66 | 0.609 | 1-1/16-12UN | 2.47 | 0.609 |
| 9 | 6801-L-16-16NWO-FG | 1.312 | 1- 5/16-12UNF | 1.81 | 0.844 | 1-5/16-12UNF | 3.06 | 0.844 |
