J系列-6804
发布日期：2024-01-12 浏览次数：161

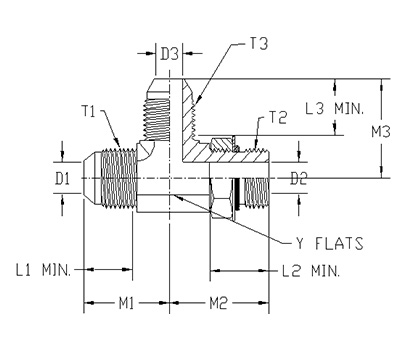

| ITEM | P/N | Y HEX | T1 | T2 | T3 | M1 | M2 | M3 | D1 | D2 | D3 |
| 1 | 6804-06-06-06-NWO-FG | 0.562 | 9/16-18UNF | 9/16-18UNF | 9/16-18UNF | 1.06 | 1.25 | 1.06 | 0.297 | 0.297 | 0.297 |
| 2 | 6804-08-08-08-NWO-FG | 0.750 | 3/4-16UNF | 3/4-16UNF | 3/4-16UNF | 1.25 | 1.45 | 1.25 | 0.391 | 0.391 | 0.391 |
| 3 | 6804-10-10-10-NWO-FG | 0.875 | 7/8-14UN | 7/8-14UN | 7/8-14UN | 1.45 | 1.7 | 1.45 | 0.484 | 0.484 | 0.484 |
| 4 | 6804-10-10-12-NWO-FG | 1.062 | 7/8-14UN | 7/8-14UN | 1-1/16-12UN | 1.54 | 1.78 | 1.66 | 0.484 | 0.484 | 0.609 |
| 5 | 6804-12-10-12-NWO-FG | 1.062 | 1-1/16-12UN | 7/8-14UN | 1-1/16-12UN | 1.66 | 1.78 | 1.66 | 0.609 | 0.484 | 0.609 |
| 6 | 6804-12-12-12-NWO-FG | 1.062 | 1-1/16-12UN | 1-1/16-12UN | 1-1/16-12UN | 1.66 | 1.94 | 1.66 | 0.609 | 0.609 | 0.609 |
| 7 | 6804-12-16-12-NWO-FG | 1.312 | 1-1/16-12UN | 1-5/16-12UN | 1-1/16-12UN | 1.76 | 2.05 | 1.76 | 0.609 | 0.844 | 0.609 |
| 8 | 6804-16-16-16-NWO-FG | 1.312 | 1-5/16-12UN | 1-5/16-12UN | 1-5/16-12UN | 1.81 | 2.05 | 1.81 | 0.844 | 0.844 | 0.844 |
| 9 | 6804-24-24-24-NWO-FG | 1.875 | 1-7/8-12UN | 1-7/8-12UN | 1-7/8-12UN | 2.33 | 2.39 | 2.33 | 1.312 | 1.312 | 1.312 |
