F4OMXS
发布日期：2024-01-16 浏览次数：149

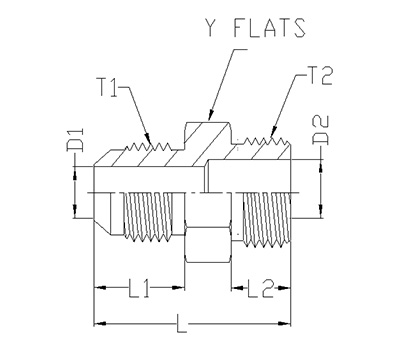

| ITEM | P/N | Y FLATS | T1 | T2 | D1 | D2 | L1 | L2 | L |
| 1 | 4-2F 4OMXS | 16 | 7/16-20UNF | G1/8-28 | 4.4 | 4.4 | 13.97 | 7.9 | 28.7 |
| 2 | 4-F 4OMXS | 19 | 7/16-20UNF | G1/4-19 | 4.4 | 4.4 | 13.97 | 11 | 32 |
| 3 | 4-6F 4OMXS | 22 | 7/16-20UNF | G3/8-19 | 4.4 | 4.4 | 13.97 | 11 | 33 |
| 4 | 5-4F 4OMXS | 19 | 1/2-20UNF | G1/4-19 | 6 | 6 | 13.97 | 11 | 32 |
| 5 | 6- 4F 4OMXS | 19 | 9/16-18UNF | G1/4-19 | 7.5 | 7.5 | 14.12 | 11 | 32 |
| 6 | 6F 4OMXS | 22 | 9/16-18UNF | G3/8-19 | 7.5 | 7.5 | 14.12 | 11 | 33 |
| 7 | 6-8F 4OMXS | 30 | 9/16-18UNF | G1/2-14 | 7.5 | 7.5 | 14.12 | 14.3 | 38.6 |
| 8 | 8-4F 4OMXS | 19 | 3/4-16UNF | G1/4-19 | 9.9 | 9.9 | 16.69 | 11 | 35 |
| 9 | 8-6F 4OMXS | 22 | 3/4-16UNF | G3/8-19 | 9.9 | 9.9 | 16.69 | 11 | 36 |
| 10 | 8-F4OMXS | 30 | 3/4-16UNF | G1/2-14 | 9.9 | 9.9 | 16.69 | 14.3 | 41.4 |
| 11 | 8-12F 4OMXS | 36 | 3/4-16UNF | G3/4-14 | 9.9 | 9.9 | 16.69 | 14.3 | 42.4 |
| 12 | 10-08F 4OMXS | 30 | 7/8-14UNF | G1/2-14 | 12.3 | 12.3 | 19.25 | 14.3 | 43.9 |
| 13 | 12F 4OMXS | 36 | 1 1/16-12UN | G3/4-14 | 15.5 | 15.5 | 21.95 | 14.3 | 47.5 |
| 14 | 12-16F 4OMXS | 46 | 1 1/16-12UNF | G1-11 | 15.5 | 15.5 | 21.95 | 18.2 | 52.6 |
| 15 | 16-12F 4OMXS | 36 | 1 5/16-12UN | G3/4-14 | 21.5 | 21.5 | 23.14 | 16.5 | 48.5 |
| 16 | 16F 4OMXS | 46 | 1 5/16-12UN | G1-11 | 21.5 | 21.5 | 23.14 | 18.2 | 53.6 |
| 17 | 20F 4OMXS | 50 | 1 5/8-12UN | G1 1/4-11 | 27.5 | 27.5 | 24.33 | 18.2 | 56.9 |
| 18 | 20-24F 4OMXS | 55 | 1 5/8-12UN | G1 1/2-11 | 27.5 | 27.5 | 24.33 | 18.9 | 56.8 |
| 19 | 24-20F 4OMXS | 50 | 1 7/8-12UN | G1 1/4-11 | 33 | 33 | 27.51 | 18.9 | 60.4 |
| 20 | 24F 4OMXS | 55 | 1 7/8-12UN | G1 1/2-11 | 33 | 33 | 27.51 | 18.2 | 61 |
| 21 | 32F 4OMXS | 70 | 2 1/2-12UN | G2-11 | 45.2 | 45.2 | 33.86 | 17 | 70.6 |
