B系列-60-2001
发布日期：2024-01-09 浏览次数：159

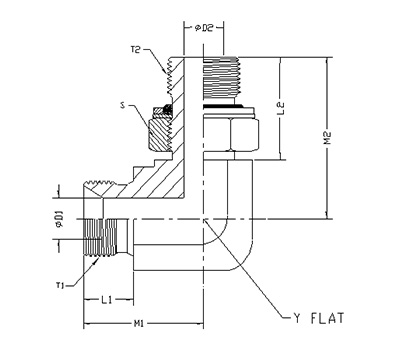

| ITEM | P/N | T1 | T2 | L1 | L2 | M1 | M2 | D1 | D2 | S | Y FLATS |
| 1 | 60-2001-02-02 | G1/8-28 | G1/8-28 | 8.0 | 15.1 | 17.5 | 25.4 | 3.5 | 4.2 | 14 | 14 |
| 2 | 60-2001-02-04 | G1/8-28 | G1/4-19 | 8.0 | 19.9 | 18.3 | 29.1 | 3.5 | 4.7 | 19 | 14 |
| 3 | 60-2001-04-02 | G1/4-19 | G1/8-28 | 11.0 | 15.1 | 22.8 | 24.3 | 4.7 | 4.2 | 14 | 17 |
| 4 | 60-2001-04-04 | G1/4-19 | G1/4-19 | 11.0 | 19.9 | 26.9 | 29.1 | 4.7 | 4.7 | 19 | 17 |
| 5 | 60-2001-04-06 | G1/4-19 | G3/8-19 | 11.0 | 21.0 | 29.0 | 34.4 | 4.7 | 7.9 | 22 | 19 |
| 6 | 60-2001-06-04 | G3/8-19 | G1/4-19 | 12.0 | 19.9 | 30.0 | 33.3 | 7.9 | 4.7 | 19 | 22 |
| 7 | 60-2001-06-06 | G3/8-19 | G3/8-19 | 12.0 | 21.0 | 30.0 | 34.4 | 7.9 | 7.9 | 22 | 22 |
| 8 | 60-2001-06-08 | G3/8-19 | G1/2-14 | 12.0 | 27.6 | 32.0 | 43.5 | 7.9 | 11.1 | 27 | 24 |
| 9 | 60-2001-08-06 | G1/2-14 | G3/8-19 | 14.0 | 21.0 | 34.0 | 36.9 | 11.1 | 7.9 | 22 | 24 |
| 10 | 60-2001-08-08 | G1/2-14 | G1/2-14 | 14.0 | 27.6 | 34.0 | 43.5 | 11.1 | 11.1 | 27 | 24 |
| 11 | 60-2001-08-12 | G1/2-14 | G3/4-14 | 14.0 | 30.6 | 31.6 | 49.8 | 11.1 | 16.7 | 36 | 27 |
| 12 | 60-2001-12-08 | G3/4-14 | G1/2-14 | 16.0 | 27.6 | 42.8 | 49.8 | 16.7 | 11.1 | 27 | 32 |
| 13 | 60-2001-12-12 | G3/4-14 | G3/4-14 | 16.0 | 30.6 | 42.8 | 52.8 | 16.7 | 16.7 | 36 | 32 |
| 14 | 60-2001-12-16 | G3/4-14 | G1-11 | 16.0 | 33.9 | 43.0 | 55.7 | 16.7 | 22.2 | 41 | 41 |
| 15 | 60-2001-16-12 | G1-11 | G3/4-14 | 19.0 | 30.6 | 46.0 | 52.4 | 22.2 | 16.7 | 36 | 41 |
| 16 | 60-2001-16-16 | G1-11 | G1-11 | 19.0 | 33.9 | 46.0 | 55.7 | 22.2 | 22.2 | 41 | 41 |
| 17 | 60-2001-20-20 | G1 1/4-11 | G1 1/4-11 | 20.0 | 36.2 | 52.3 | 64.4 | 28.6 | 28.6 | 50 | 50 |
| 18 | 60-2001-24-24 | G1 1/2-11 | G1 1/2-11 | 22.0 | 36.2 | 60.5 | 67.6 | 33.3 | 33.3 | 55 | 55 |
| 19 | 60-2001-32-32 | G2-11 | G2-11 | 25.0 | 31.5 | 78.0 | 78.5 | 40.0 | 45.1 | 70 | 63.5 |
