E系列-C2502
发布日期：2024-01-09 浏览次数：162

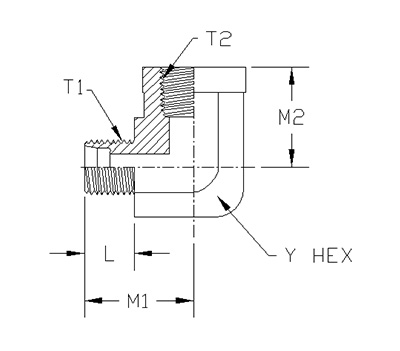

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | C2502-04-02-FG | 0.562 | 7/16-20 UNF | 0.89 | 0.203 | 1/8-27 NPTF | 0.66 | 0.315 |
| 2 | C2502-04-04-FG | 0.75 | 7/16-20 UNF | 1.03 | 0.203 | 1/4-18 NPTF | 0.88 | 0.39 |
| 3 | C2502-06-04-FG | 0.75 | 9/16-18 UNF | 1.05 | 0.281 | 1/4-18 NPTF | 0.88 | 0.39 |
| 4 | C2502-06-06-FG | 0.875 | 9/16-18 UNF | 1.12 | 0.281 | 3/8-18 NPTF | 1.02 | 0.531 |
| 5 | C2502-08-04-FG | 0.875 | 3/4-16 UNF | 1.23 | 0.422 | 1/4-18 NPTF | 1.01 | 0.39 |
| 6 | C2502-08-06-FG | 0.875 | 3/4-16 UNF | 1.23 | 0.422 | 3/8-18 NPTF | 1.02 | 0.531 |
| 7 | C2502-08-08-FG | 1.062 | 3/4-16 UNF | 1.35 | 0.422 | 1/2-14 NPTF | 1.23 | 0.649 |
| 8 | C2502-10-08-FG | 1.062 | 7/8-14 UNF | 1.42 | 0.5 | 1/2-14 NPTF | 1.23 | 0.649 |
| 9 | C2502-12-12-FG | 1.312 | 1-1/16-12UN | 1.58 | 0.656 | 3/4-14 NPTF | 1.36 | 0.719 |
| 10 | C2502-14-12-FG | 1.312 | 1-3/16-12 UN | 1.62 | 0.719 | 3/4-14 NPTF | 1.42 | 0.719 |
| 11 | C2502-16-16-FG | 1.625 | 1-5/16-12 UN | 1.73 | 0.875 | 1-11-1/2 NPTF | 1.62 | 0.938 |
