E系列-C2601
发布日期：2024-01-09 浏览次数：161

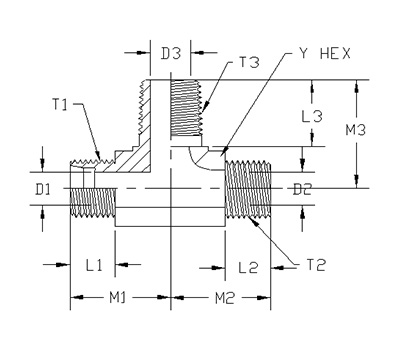

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 | T3 | M3 | D3 |
| 1 | C2601-04-04-02-FG | 0.438 | 7/16-20 UNF | 0.89 | 0.203 | 7/16-20 UNF | 0.89 | 0.203 | 1/8-27 NPTF | 0.78 | 0.188 |
| 2 | C2601-05-05-02-FG | 0.562 | 1/2-20 UNF | 0.95 | 0.234 | 1/2-20 UNF | 0.95 | 0.234 | 1/8-27 NPTF | 0.81 | 0.188 |
| 3 | C2601-06-06-04-FG | 0.562 | 9/16-18 UNF | 1.05 | 0.281 | 9/16-18 UNF | 1.05 | 0.281 | 1/4-18 NPTF | 1.09 | 0.281 |
| 4 | C2601-08-08-06-FG | 0.75 | 3/4-16 UNF | 1.25 | 0.422 | 3/4-16 UNF | 1.25 | 0.422 | 3/8-18 NPTF | 1.22 | 0.406 |
| 5 | C2601-08-08-08-FG | 0.875 | 3/4-16 UNF | 1.35 | 0.422 | 3/4-16 UNF | 1.35 | 0.422 | 1/2-14 NPTF | 1.47 | 0.531 |
| 6 | C2601-10-10-08-FG | 0.875 | 7/8-14 UNF | 1.42 | 0.500 | 7/8-14 UNF | 1.42 | 0.500 | 1/2-14 NPTF | 1.47 | 0.531 |
| 7 | C2601-14-14-12-FG | 1.312 | 1-3/16-12 UNF | 1.66 | 0.719 | 1-3/16-12 UNF | 1.66 | 0.719 | 3/4-14 NPTF | 1.69 | 0.719 |
| 8 | C2601-16-16-16-FG | 1.312 | 1-5/16-12 UN | 1.73 | 0.875 | 1-5/16-12 UN | 1.73 | 0.875 | 1-11-1/2 NPTF | 1.97 | 0.938 |
